8030-GH Ultra-slim Non-welding Aluminum Railing Systems

Short Description:

8030-GH aluminum glass railing with glass barrier is an excellent option for all-aluminum guardrail and fence.

Non-welding structure by screws, combining with excellent safety and modern technology. It has scientific structures for easy installation and maintenance. It is suitable for apartment balconies, hotel lobbies, outdoor terraces, commercial staircases and courtyards.

Send email to us

Product Detail

Product Tags

Video

Product Detail

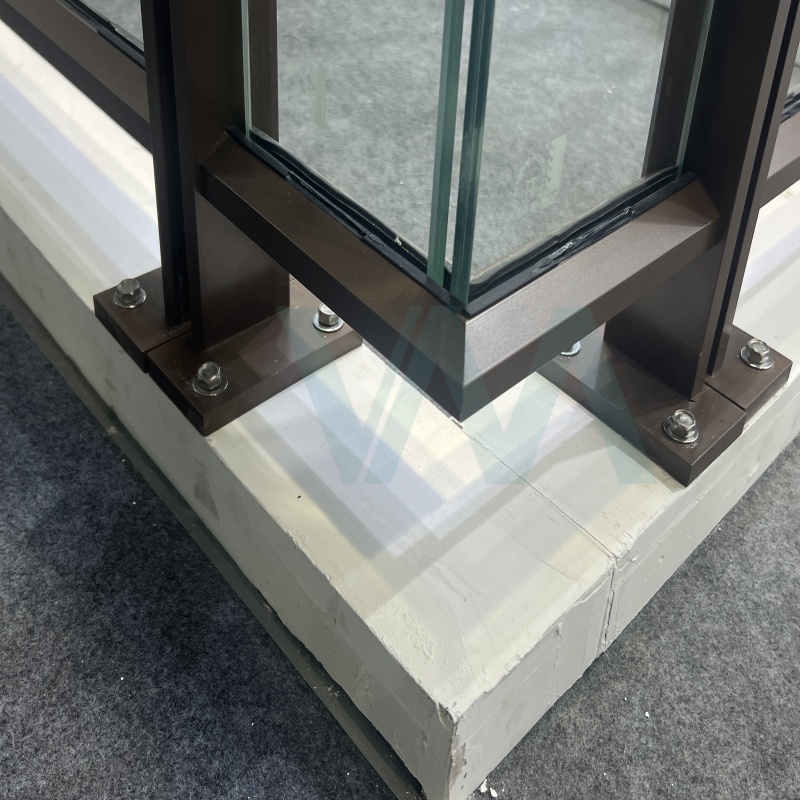

8030-GH is made of Aluminum alloy 6063-T5 and Laminated tempered glass with excellent mechanical properties.

Style: Extremely slim, with a 13mm post, compared to the traditional 100*100 or even 120*120 columns. The rectangular tube infill is also 13mm, making it ultra slim.

Additional Crossbars, enhance stability and the possibility of achieving bigger height.

Weld-free, fixed with 304 stainless steel self-tapping screws, sturdier fixation, no weld marks, and more aesthetically elegant, faster lead time.

Colors include Enamel White/ Stellar Gray/Mocha Brown, Suitable to modern decoration.

Advanced skin-friendly powder coating provides a more comfortable touch feeling.

Glass: Laminated tempered clear glass, optional thickness: 5+5 / 6+6 / 8+8mm

Glass Certification: AS / SGCC / CE

Sizes: Handrail tube：80*30*2.5mm，Bottom tube：55*23*2.5mm

Load-bearing post：65*13*3.5mm，Square Glass：5+5mm / 6+6mm / 8+8mm

Height range: 850-1200mm, Unit span: 1200-1500mm, comply with the building codes of different countries.

Weather ability: Outdoor weather-resistant powder coating (AAMA2603 standard), with superior long life. Super weather-resistant powder coating (AAMA2604 standard) and fluorocarbon powder coating (AAMA2605 standard) can be customized.

Easy to install: Without solder, it’s easy to install by screws, instruction manual and videos will be offered.

Low maintenance: The aluminum alloy is anti-rust, anti-corrosion, more than 50 years’ service life.

Packaging: Export standard plywood crate package for excellent protection.

Shipment: More flexible in shipping. The products can be shipped in standard units and assembled into a complete guardrail on project site. The corner connection is modular designed and easy to assemble.

It can be shipped with cut profiles, saving shipping space and costs.

Why Choose Us?

Seven Major advantages:

Qualified aluminum, High load capacity, Stable performance,

Non-welding Design, Easy installation, efficient transportation.

OEM&ODM Service Available

3D graphic, Solution drawings &Technic support

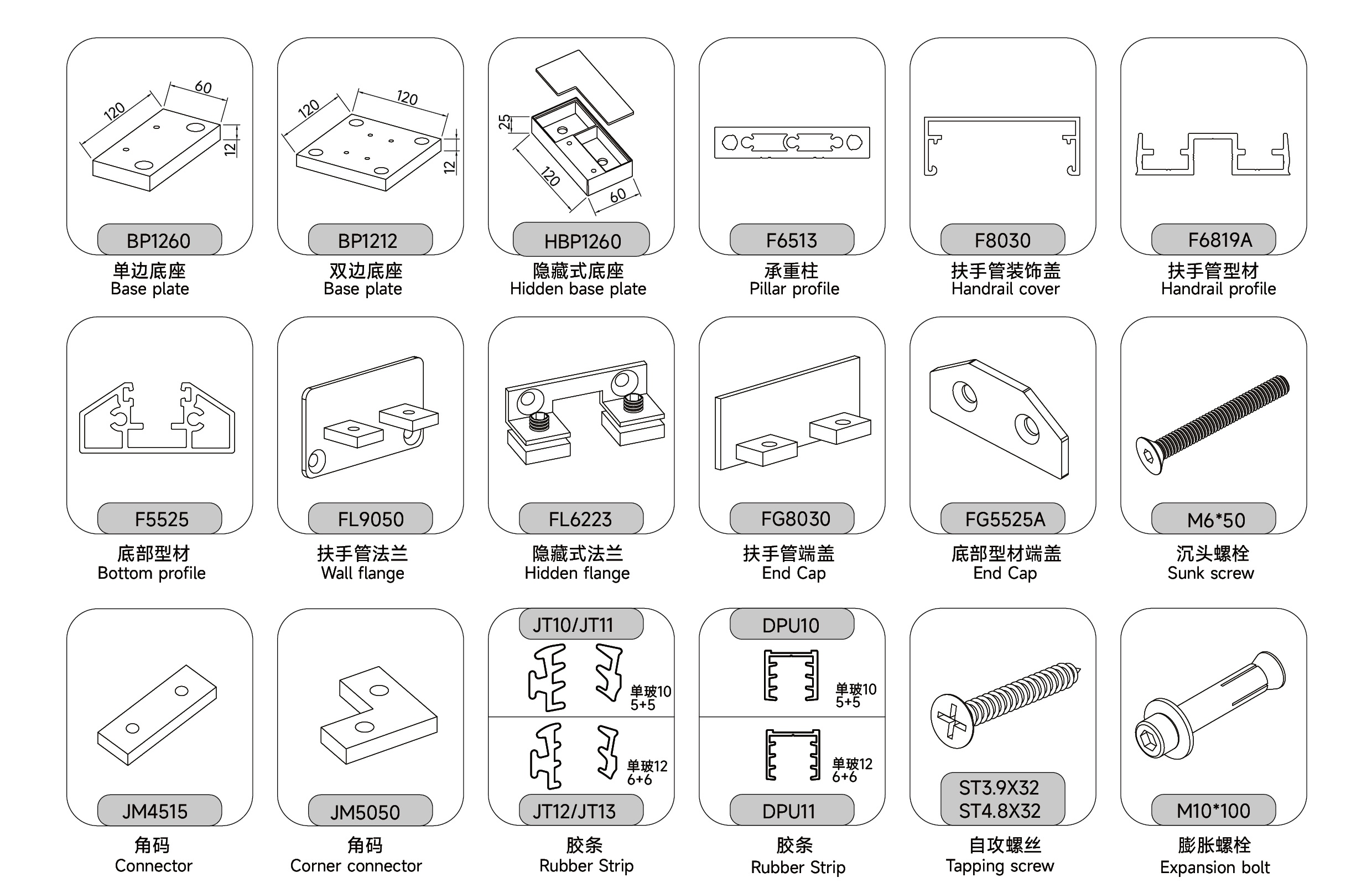

What's included?

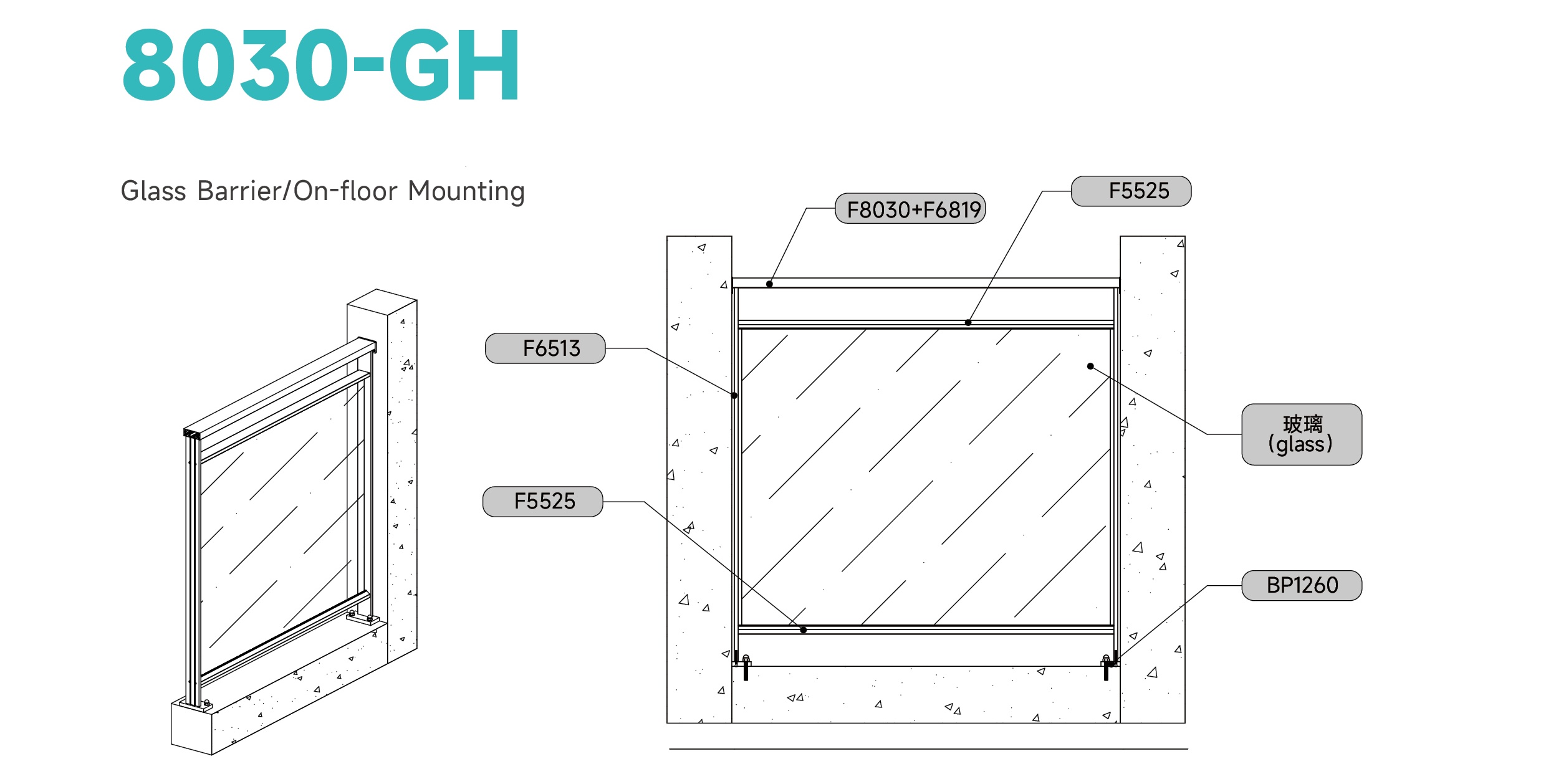

Top rail: handrail profiles: F8030&F6819A

Bottom Profile: F5525

Post profile: F6513

Barrier Glass: 5+5mm / 6+6mm / 8+8mm

Glass Certification: AS / SGCC / CE

Accessories: BP1260, BP1212, FL9050, FL6223, FG8030, FG5525A, JM4515, JM5050

Screws: Taping screws ST3.9x32, ST4.8x32,

Sunk screws: M6*50, Expansion bolt: M10*100

Rubber strips: JT12/JT13, DPU11

The round barrier height is according to customer’s drawings or measurements.

It’s cut and processed in factory, easy to assemble when customers get the packages.

Application

With advantage of simple design and modern appearance, A30 On-floor All Glass Railing System can be applied on balcony, terrace, rooftop, staircase, partition of plaza, guard railing, garden fence, swimming pool fence.
