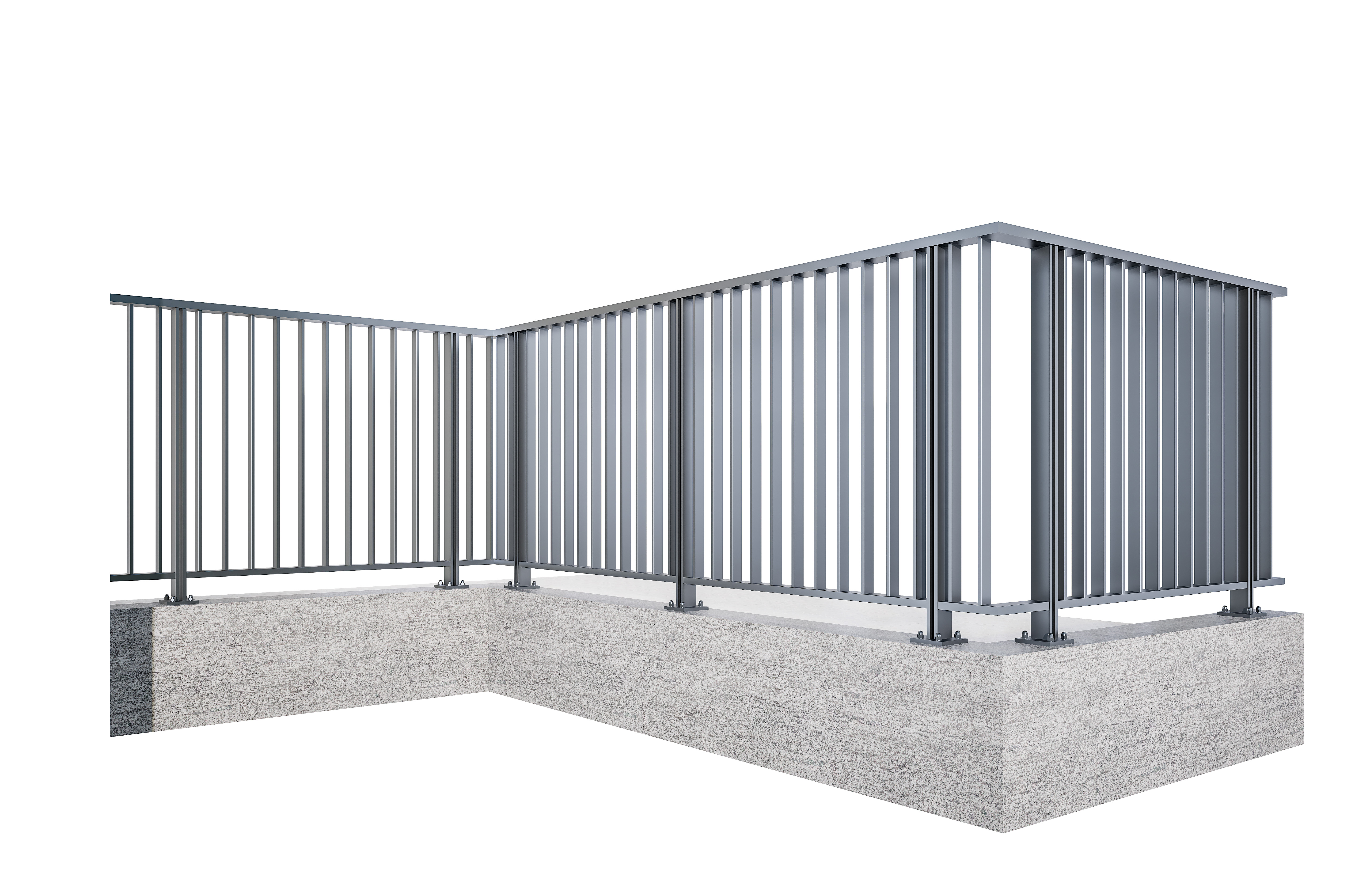

8030-J Ultra-slim Non-welding Aluminum Railing Systems
Video
Product Detail
8030-J is made of Aluminum alloy 6063-T5 with excellent mechanical properties.
Style: Slim without welding, Suitable to modern decoration.
Colors include Enamel White/Starry Gray/Mocha Brown,
Advanced skin-friendly powder coating provides a more comfortable touch feeling.
Sizes: Handrail tube：80*30*2.5mm，Bottom tube：55*23*2.5mm
Load-bearing tube：65*13*3.5mm，Square protection tube：45*13*1.5mm
Height range: 850-1200mm, Span: 1200-1500mm, comply with the building codes of different countries.
Sizes: Handrail tube：80*30*2.5mm，Bottom tube：55*23*2.5mm
Load-bearing tube：65*13*3.5mm，Square protection tube：45*13*1.5mm
Height range: 850-1200mm, Span: 1200-1500mm, comply with the building codes of different countries.
Weather ability: Outdoor weather-resistant surface treatment, with superior long life. Super weather-resistant
And fluorocarbon powder coating surfaces can be customized according to customers’ need.
Low maintenance: The aluminum alloy is anti-rust, anti-corrosion, usage life last for lots of years.
Packaging: they’re packed in standard exporting carton or wooden case for good protection.
Why Choose Us?
Seven Major advantages:
Qualified aluminum, High load capacity, Stable performance.
Non-welding Design, Easy installation, efficient transportation.
OEM&ODM Service Available.
3D graphic, Solution drawings &Technic support.

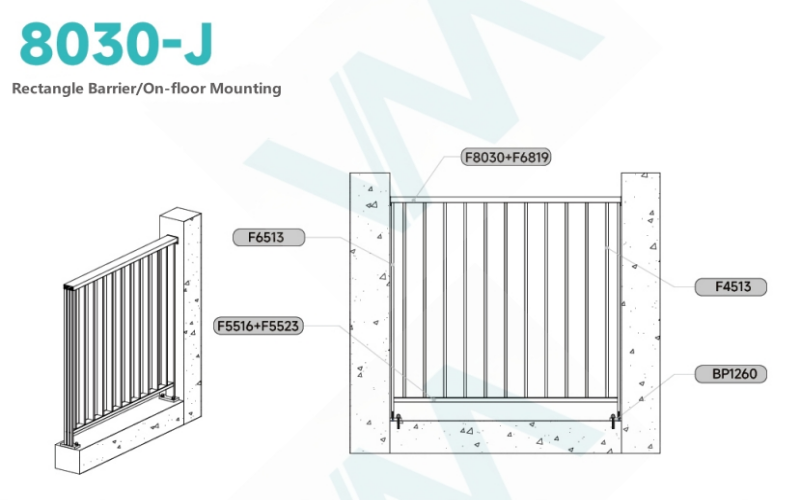

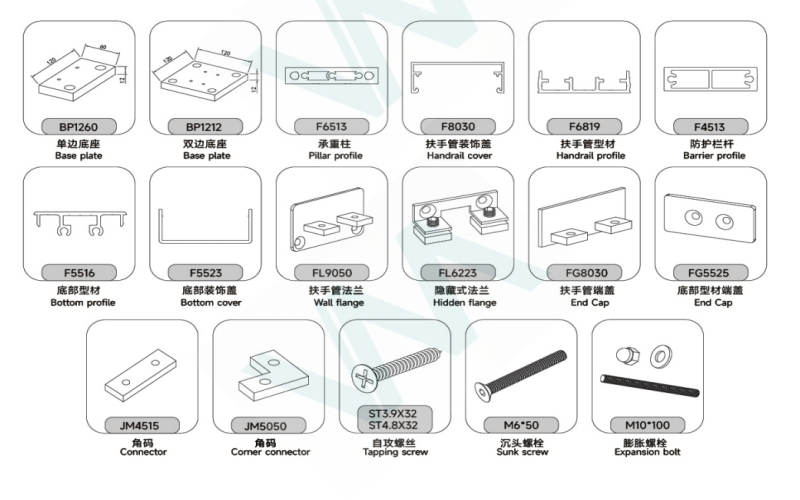

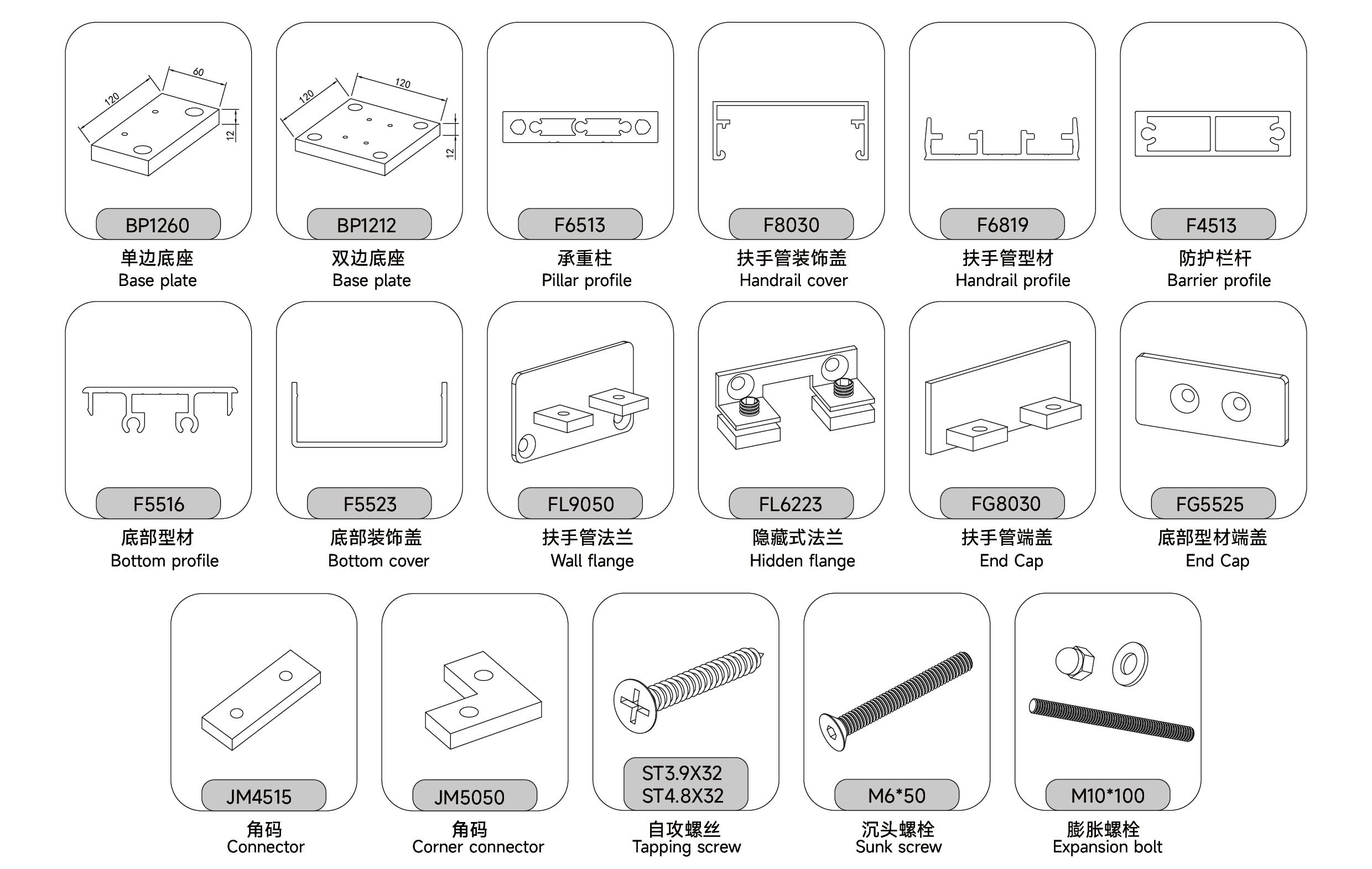

What's included?

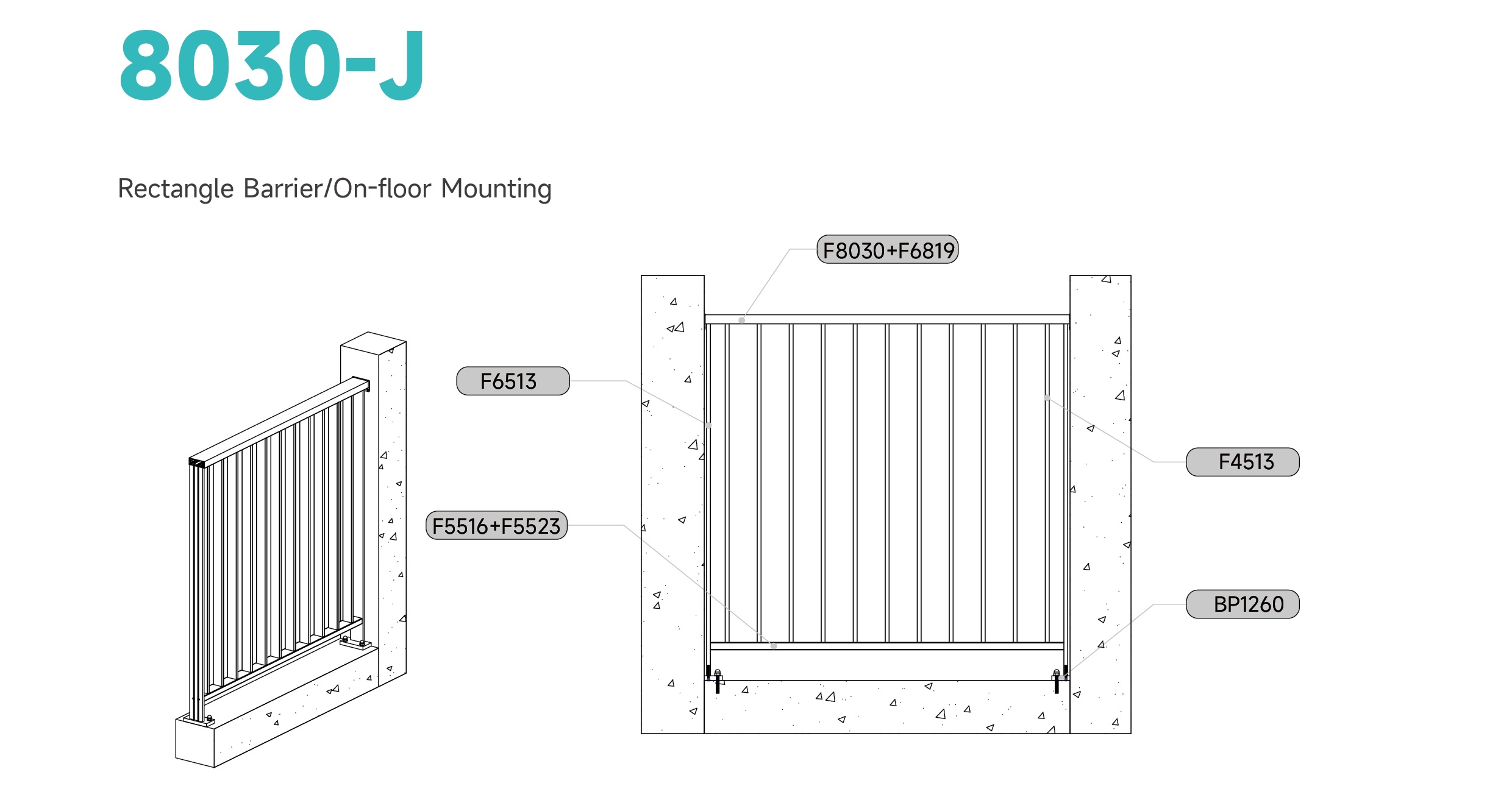

Top rail: handrail profiles: F8030&F6819
Bottom rail: bottom rails: F5516&F5523

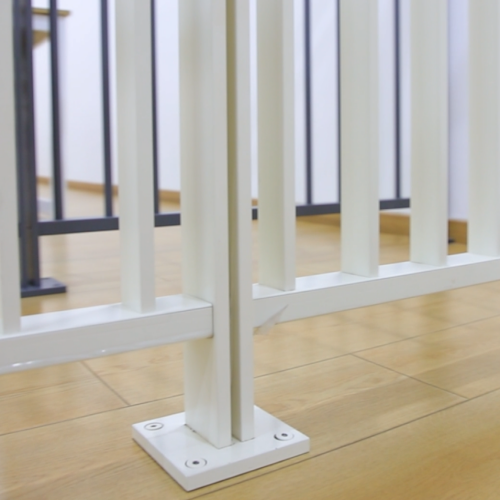

Pillar post: F6513
Barrier profile: F4513
Accessories: FL9050, FL6223, FG8030, FG5525, JM4515, JM5050
Screws: Taping screws ST3.9x32, ST4.8x32,
Sunk screws: M6*50, Expansion bolt: M10*100

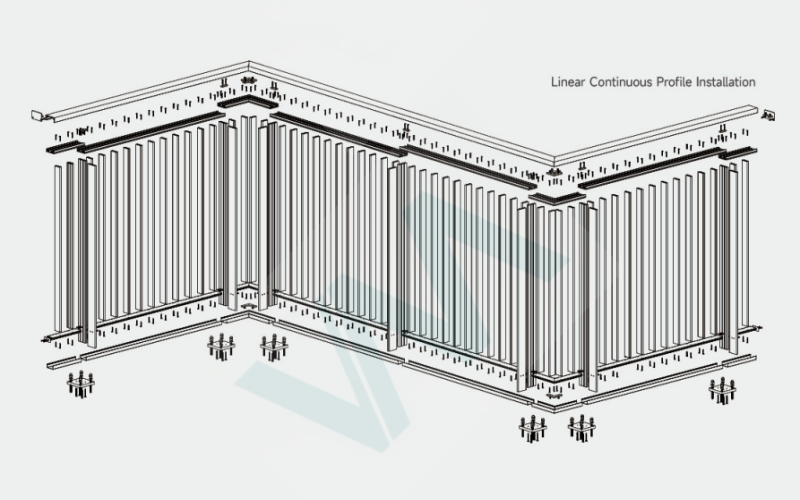

The Square Barrier length is according to customer’s drawings or measurements.
It’s cut and processed in factory, easy to assemble when customers get the packages.

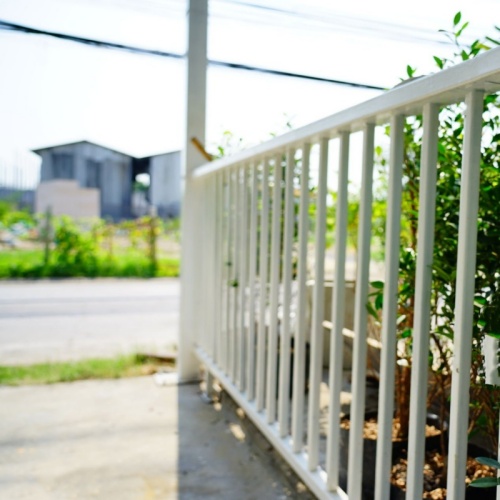

Application

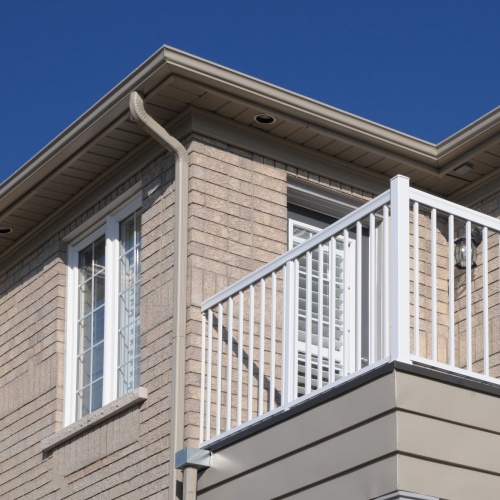

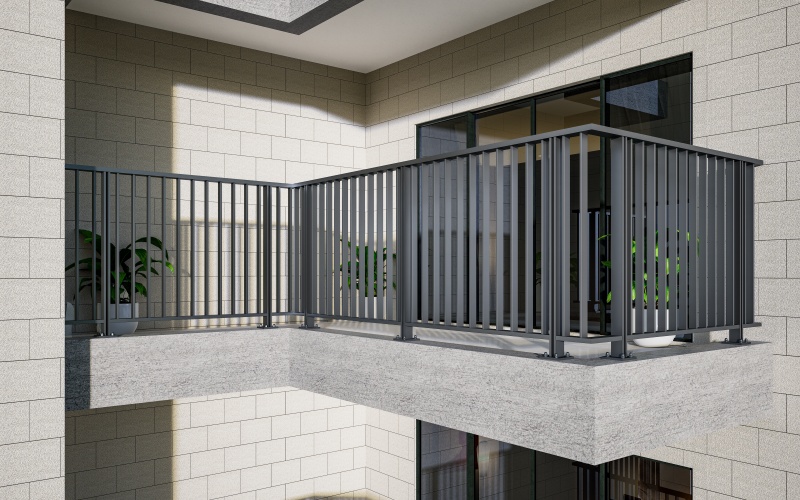

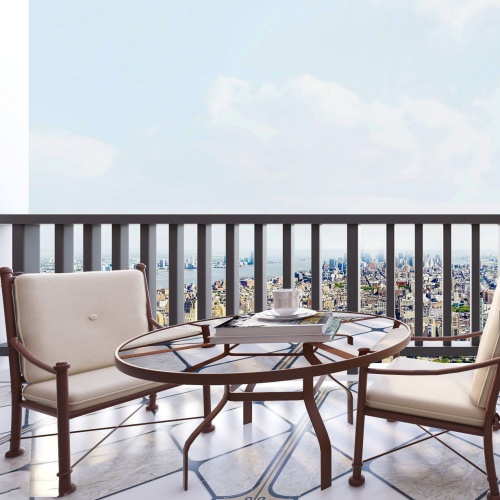

With advantage of simple design and modern appearance, A30 On-floor All Glass Railing System can be applied on balcony, terrace, rooftop, staircase, partition of plaza, guard railing, garden fence, swimming pool fence.
