A40 On-floor All Glass Railing System
Installation Video
Product Detail

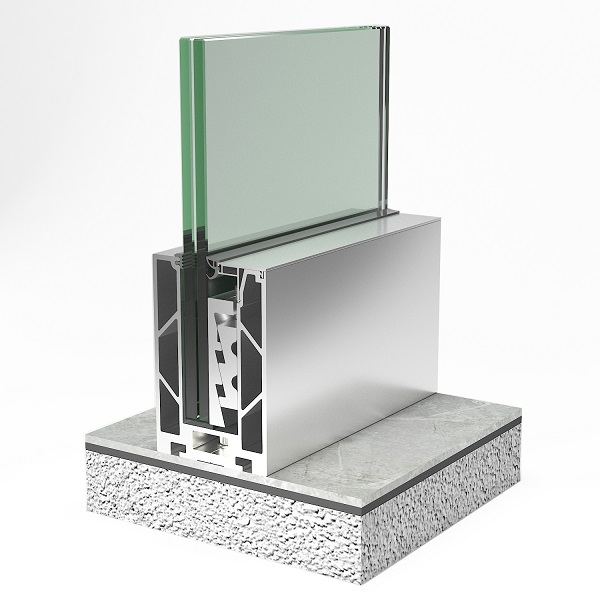

A40 is constructed of high-strength aluminum alloy profiles that are lightweight, corrosion- and oxidation-resistant, and the U-channel design wraps around the edges of the glass to provide solid support and simplify the installation process. The frame is usually fixed to the building structure with internal expansion bolts to ensure stability.
High standard, highest statics test result, easy installation, aesthetic, all these features come to A40 On-floor All Glass Railing System, wide choice of safety glass can meet requirements of different application scene. Special designed LED channel and holder profile can fit all specs of LED strip light in the market, you can enjoy brightness and joy sense of colorful LED light in the night.
The thickness of the layer is 10mm, and the PVB layer is made of viscous material, giving it high strength and safety. Its resistance is 4-5 times as strong as normal glass, and after it breaks down, it becomes more sticky, and it is more difficult to avoid flying. The glass thickness can be adjusted according to the demand, and the size can be adjusted to a larger size (as the height or width increases).
The double laminated construction significantly improves the bending stress and wind pressure resistance of the glass. For example, 10+10 laminated glass has a low heat transfer coefficient of 2.39 W/m²-K (double row installation) and sound insulation of up to 38 dB, while at the same time being able to withstand higher wind loads (calculation of adapted lengths by bending modulus).
A40 On-floor All Glass Railing System is very easy on installation. Workers just need stand on inside of balcony to finish all installation. Which avoid huge cost of aerial work and scaffold work. Meanwhile, it brings protection and safety to your high standard buildings, A40 passes American stand ASTM E2358-17 and China Standard JG/T17-2012, horizontal impact load reaches up to 2040N per sqm without assistance of handrail tube. Compatible glass can be 12mm, 15mm tempered glass, 6+6 and 8+8 laminated tempered glass.
The glass bottom part is in high demand with preservatives, and the construction of the bottom part has constant expansion. Steel alloy frame and fixing materials, decorative synthetic material caps, prevention of electrochemical corrosion
Cover plate can be aluminum profile and Stainless-steel sheet, standard color of aluminum profile cover is mysterious silver, color sample is available with free of charge. customized color is also available, coating type can be powder coating, PVDF, anodizing and electrophoretic coating. Standard color of stainless-steel cover is mirror and brushed, when application is indoor and in mild climate, PVD technic is available, advantage of PVD is various color can be customized, you can make it align with your house decoration style.
Application
With advantage of simple design and modern appearance, A40 On-floor All Glass Railing System can be applied on balcony, terrace, rooftop, staircase, partition of plaza, guard railing, garden fence, swimming pool fence.
