How far apart should glass spigots be?

Editor: View Mate All Glass Railing

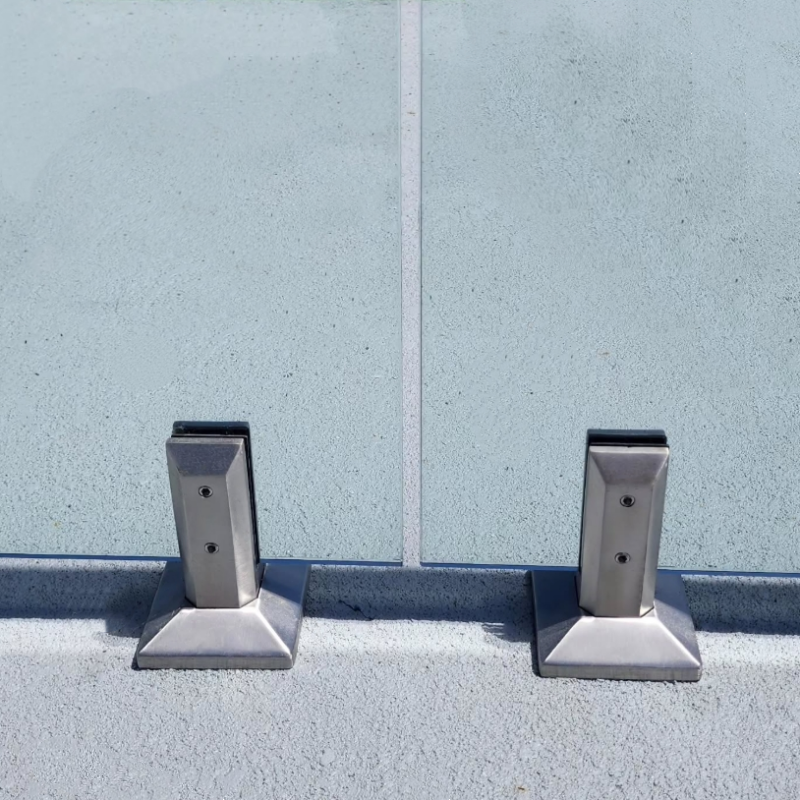

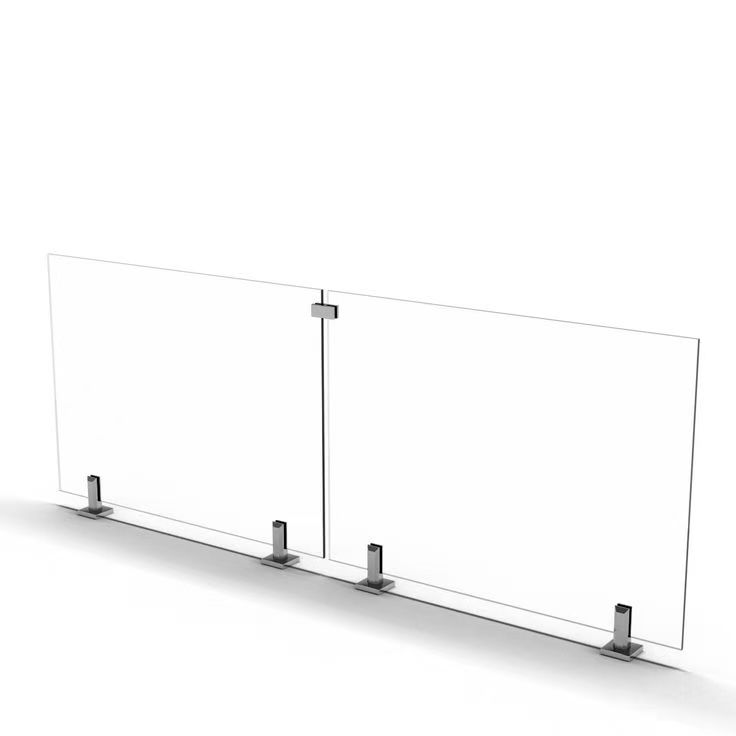

Proper spacing of glass latches (brackets) is essential to the robustness of a frameless pool fence. Industry standards stipulate:

Important Spacing Guidelines:

Standard Spacing:

Vertical Posts: Pins along the posts are typically spaced 4-6 feet (1.2-1.8 meters) apart.

Bottom Channel: Continuous channel eliminates the need for intermediate latches.

Key Deciding Factors:

Glass Thickness: 12mm glass can be spaced more widely than thinner panels.

Panel Height: Taller panels (over 1.2 meters) require closer spacing (less than 1.5 meters).

Wind Loads: High wind areas (ASCE 7 standard) require shorter spans.

Hardware Specifications: ASTM F2090 certified plugs define maximum load capacity per unit.

Consequences of improper spacing:

Spans greater than 1.8 metres can cause glass to distort and stress cracks to appear in compression.

Excessive vibrations during windy conditions can damage structural joints.

Does not comply with pool barrier standards (e.g. IBC 1607.7).
