How Thick Is a Glass Railing?

Edited by: Viewmate All Glass Railing

The thickness of glass railing panels depends on the railing system, installation method, safety requirements, and local building codes. Common options include 12 mm, 15 mm, and laminated glass configurations such as 6+6 mm, 8+8 mm, and 10+10 mm.

For homeowners, contractors, and architects, choosing the right glass thickness is important for both safety and the overall performance of a glass railing system.

Common Glass Railing Thickness Options

Glass railing systems may use monolithic glass or laminated glass, depending on the system design and project requirements.

12 mm and 15 mm glass: Options used in certain glass railing systems, subject to engineering and code requirements.

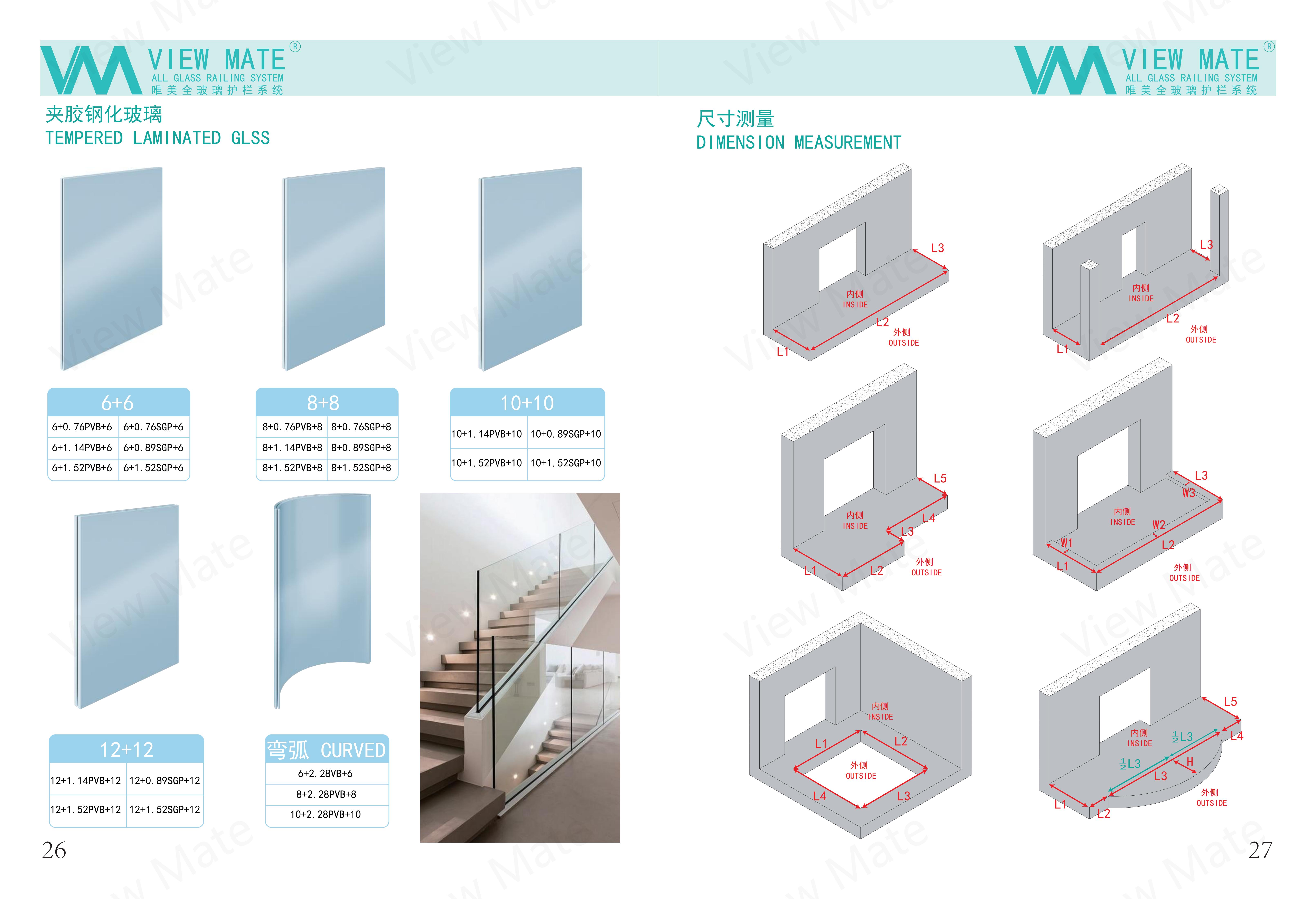

6+6 mm laminated glass: Two 6 mm glass layers bonded together with an interlayer.

8+8 mm laminated glass: Two 8 mm glass layers bonded together with an interlayer.

10+10 mm laminated glass: Two 10 mm glass layers bonded together with an interlayer.

19 mm glass: An additional option for systems designed to accommodate this thickness.

These options are not interchangeable in every application. The appropriate specification depends on the complete railing system, glass type, support conditions, and required structural performance.

Which Glass Thickness Do A10, A40, and A80 Support?

View Mate, manufactured by Foshan Arrow Dragon Metal Products Co., Ltd., offers three aluminum base-channel glass railing systems with different glass compatibility options.

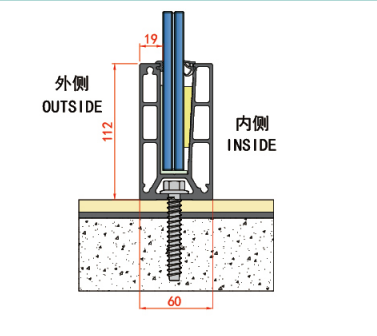

A10 Glass Railing System: Supports 12 mm, 15 mm, 6+6 mm, and 8+8 mm glass configurations.

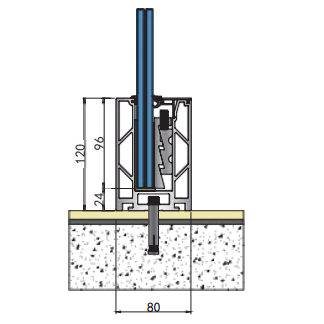

A40 Glass Railing System: Supports 12 mm, 15 mm, 19 mm, 6+6 mm, 8+8 mm, and 10+10 mm glass configurations.

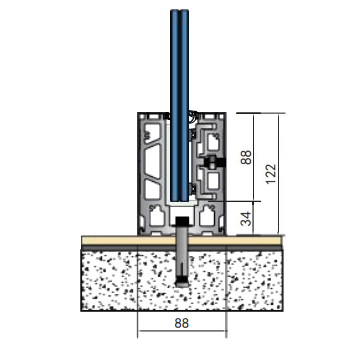

A80 Glass Railing System: Supports 12 mm, 15 mm, 19 mm, 6+6 mm, 8+8 mm, 10+10 mm, and 12+12 mm glass configurations, with certain configurations depending on the system cover and component selection.

How Do You Choose the Right Thickness?

Before selecting a glass railing, consider the installation location, panel dimensions, support method, safety-glass specification, and local building regulations. A thicker panel is not automatically suitable for every project; the glass and supporting system must be designed to work together.

he best glass railing thickness is the one specified for the complete system and verified for the intended application. Always confirm the final glass configuration with the manufacturer before ordering.
