Glass Railing Thickness: 2024 Code Requirements & Best Practices
Standard Thickness by Application
| Application | Minimum Thickness | Recommended | Key Standards |
| Residential Decks | 12mm (½”) | 12mm tempered | IBC 1607.7, ASTM C1048 |
| Commercial/Stairs | 12mm | 15mm laminated | ADA 505, ANSI Z97.1 |
| High-Wind Zones | 15mm | 15–19mm laminated | ASCE 7-22 (150+ mph) |
| Pools/Water Edges | 12mm | 12mm tempered + 316 SS | ISPSC 305, ASTM F2090 |
Critical Engineering Factors
Deflection Limits:
- 12mm glass: Maximum span of 1.5 meters (5 feet) at ≤ L/60 deflection under a 50-pound per foot load.
- 15mm glass: Capable of handling spans of 2.4 meters (8 feet) in high-wind zones.
Impact Safety:
- Tempered glass shatters into granular chunks (not daggers) upon breaking.

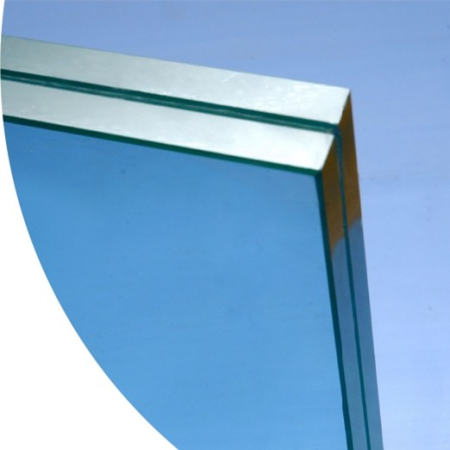

- Laminated glass retains fragments through a PVB/SGP interlayer post-breakage.
Edge Stress:
- Polished or seamed edges prevent micro-cracks (CPSC 16 CFR 1201).
When to Upgrade Thickness
- Height >greater than 42 inches: Use 15mm for reduced vibration.
- Unsupported spans greater than 5 feet: Laminated 15mm resists wind shear.
- Coastal/Salt Air environments: 15mm laminated glass with 316L stainless steel hardware.
- Stairs: Minimum thickness of 12mm with countersunk head pins (not surface clamps).
“Testing conducted in 2023 indicated that 12mm glass failed under 200-pound loads at spans of 5.5 feet. Do not exceed 5 feet with standard pane
ls.” — Structural Glass Laboratory Report
Cost vs. Safety Tradeoffs
| Thickness | Cost/LF (Material) | Lifespan | Risk Factor |
| 10mm | $90–$130 | 5–8 yrs | ⚠️ Non-compliant |
| 12mm | $110–$180 | 15+ yrs | ✅ Low (if supported ≤5ft) |
| 15mm | $190–$300 | 25+ yrs | ✅✅ Best for commercial |
Expert Recommendations
- Residential Decks: 12mm tempered glass with spigots spaced no more than 1.5 meters apart.
- Oceanfront/High-Rises: 15mm laminated glass with 50% more anchors.
- Stairs: 12mm laminated glass if integrated with a metal top rail (per IBC 1014.6).
- Verify Certifications: Mill reports (ASTM C1048) and load tests (ASTM E2353).
Non-Compliance Risks:
- Using 10mm glass can result in fines exceeding $5,000 (due to IBC violation).
- Installation of uncertified glass may void insurance coverage.
