Glass Guardrail Requirements: Code Compliance Checklist (2024 IBC/ADA/ASCE)
1. Material Specifications
-Glass:
Tempered or Laminated Tempered (ASTM C1048 / ANSI Z97.1)
Minimum Thickness: 12mm (residential), 15mm+ (commercial/high-wind)
-Hardware:
316 Marine-Grade Stainless Steel (ASTM F2090)
Epoxy anchors (concrete) or through-bolts (wood)
2. Structural & Safety Standards
| Requirement | Code Reference | Technical Spec |
|---|---|---|
| Concentrated Load | IBC 1607.7.1 | 200 lbs at any point |
| Deflection Limit | ASCE 7-22 | ≤ L/60 (e.g., 1″ max for 5ft span) |
| Height (Residential) | IBC 1015.2 | 36″–42″ above walking surface |
| Height (Commercial/Stairs) | ADA 505.4 | 42″ minimum |
| Gap Restrictions | IBC 1015.3 | ≤100mm (4″) sphere test |
| Top Rail (Stairs Only) | IBC 1014.6 | Graspable rail 34–38″ height |
3. Critical Installation Protocols
Edge Treatment: Polished/seamed edges (CPSC 16 CFR 1201)

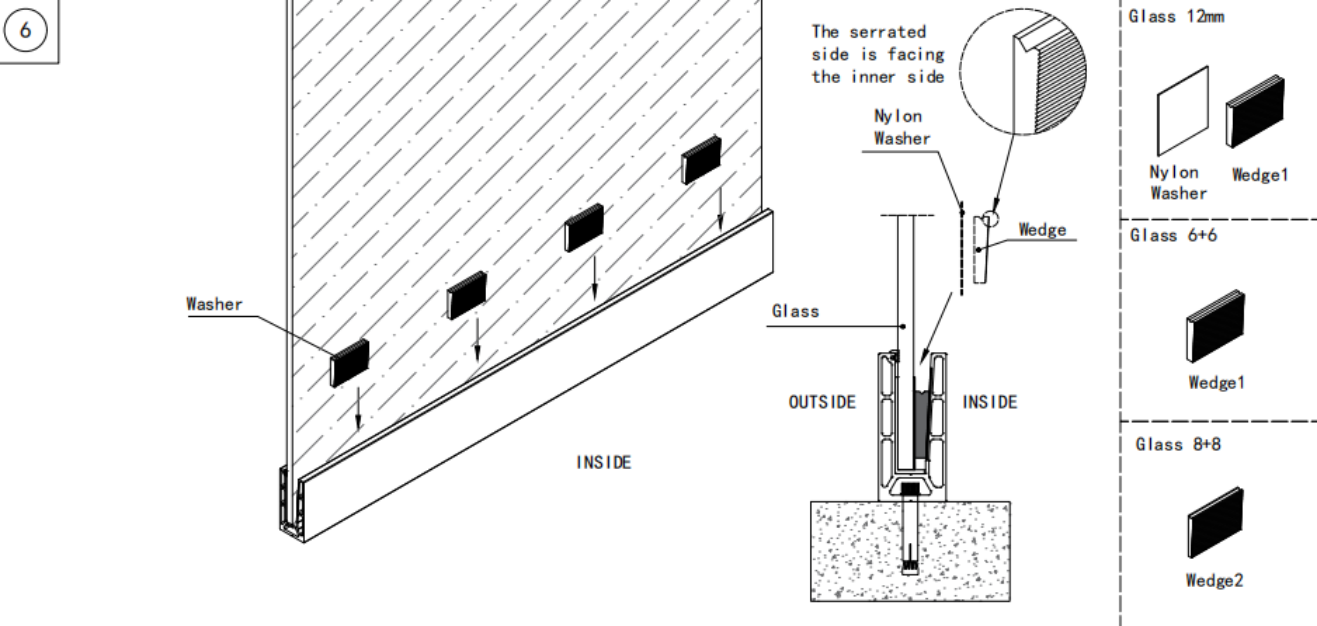

Anchoring:
Concrete: 1/2″ epoxy anchors (3″ embedment)
Wood: 3/8″ through-bolts with backing plates
Spigot Spacing: ≤1.5m (4.9 ft) for 12mm glass (ASCE 7 wind maps)
Documentation: Third-party ASTM E2353 load test reports required
4. Common Failure Points & Fixes
- ❌ 10mm annealed glass → Replace with 12mm+ tempered
- ❌ 304 stainless hardware → Upgrade to 316 SS with ASTM F2090 cert
- ❌ Gaps >100mm → Adjust clamps/spigots
- ❌ Missing top rail on stairs → Install graspable rail (34–38″ height)
“2023 injury reports show 72% of failures involved uncertified glass or corroded hardware.”
— National Safety Council (NSC) Alert
5. Expert Recommendations
- High-Wind Zones: Use 15mm laminated glass + 50% more anchors
- Coastal Sites: Specify 316L stainless steel (salt-resistant)
- Stairs: Integrate countersunk head pins with UV-stable epoxy (SikaFlex® 295)
- Manufacturer Pre-Approval: Systems like Q-Railing or C.R. Laurence include compliance packs
⚠️ Penalty Note: Non-compliant installations risk $5,000+ fines (US) and void insurance.
