Edited by: Viewmate All Glass Railing

Frameless glass railing creates a clean architectural look with minimal visible hardware, making it popular for balconies, decks, terraces, and staircases. But how is a frameless glass railing actually installed?

Although the finished system looks simple, proper installation requires careful planning of the supporting structure, fixing method, glass panels, and installation tolerances.

1. Check the Supporting Structure

The first step is confirming that the balcony, deck, or staircase can support the railing system.

The base channel, spigots, or other fixing hardware must transfer railing loads into a suitable substrate. A strong glass panel cannot compensate for an inadequate supporting structure.

2. Choose the Right Fixing System

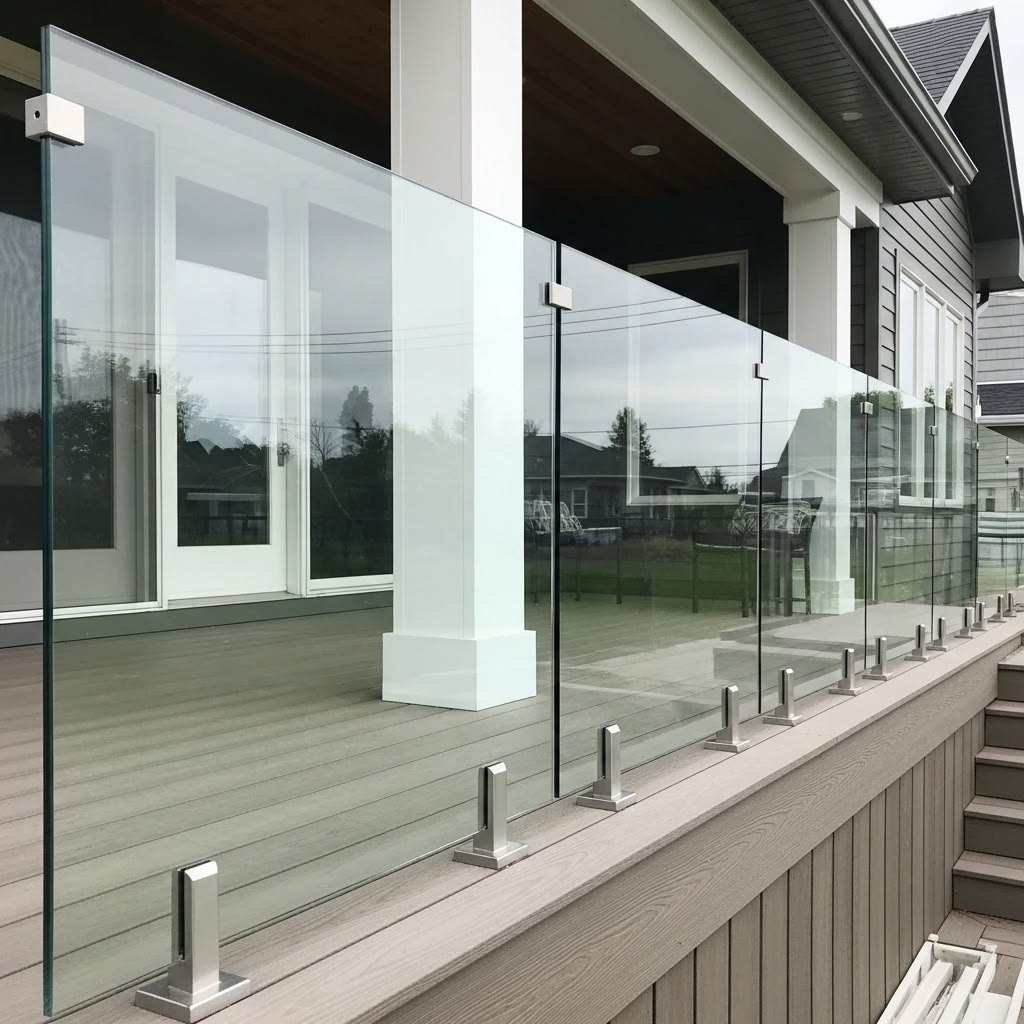

Frameless glass railings are commonly installed using base channels, spigots, or other concealed fixing systems.

A continuous base channel can provide a very clean appearance, while spigots offer a more discrete fixing solution. The choice depends on the structure, available installation space, design requirements, and project conditions.

3. Install and Align the Hardware

Once the fixing method is selected, the channel or hardware needs to be accurately positioned and securely anchored.

This stage is particularly important for frameless systems because small alignment problems can become noticeable once the glass is installed. Recent industry guidance highlights the importance of surveying the actual structure before final glass dimensions are confirmed.

4. Install the Glass Panels

After the supporting hardware is ready, the glass panels can be positioned and secured according to the system’s installation requirements.

Depending on the system, adjustment mechanisms may help installers achieve accurate alignment. The glass specification should also be appropriate for the railing application and applicable safety requirements.

5. Consider Drainage and Waterproofing

For exterior balconies and terraces, installation is not only about fixing the railing securely. The connection between the railing and the building also needs to account for water drainage and waterproofing.

This is especially important when a base channel is recessed into the floor because the channel area must work with the surrounding floor and waterproofing details.

What Should Homeowners Check Before Installation?

Before ordering a frameless glass railing, confirm:

-Is the supporting structure suitable?
-Which fixing method is appropriate?
-Where will the loads be transferred?
-Can the glass dimensions be accurately confirmed?
-How will drainage and waterproofing be handled?
-Does the complete system meet local building requirements?

A frameless glass railing may look simple after installation, but achieving that clean appearance requires careful structural planning and accurate installation. The best results come from treating the glass, hardware, substrate, and building interface as one complete system.
