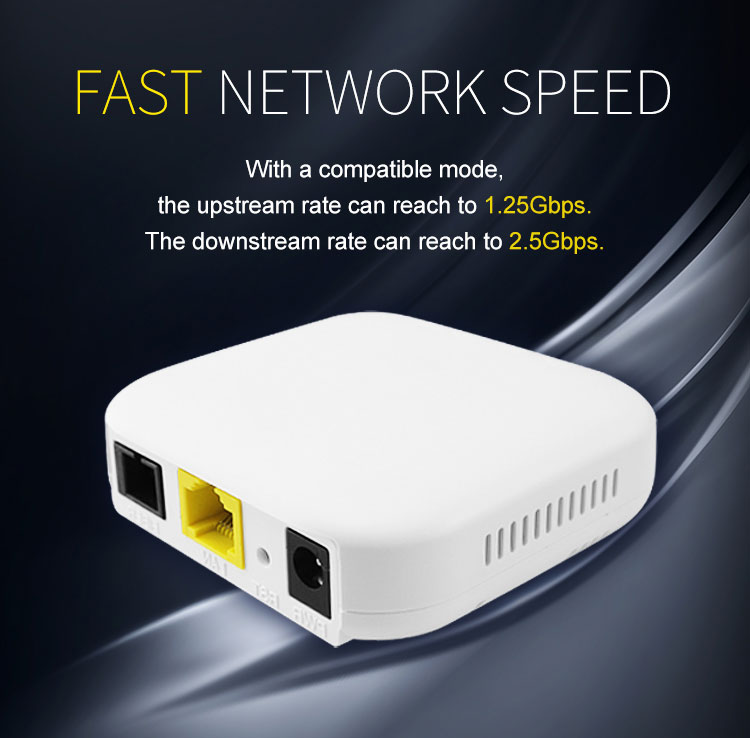

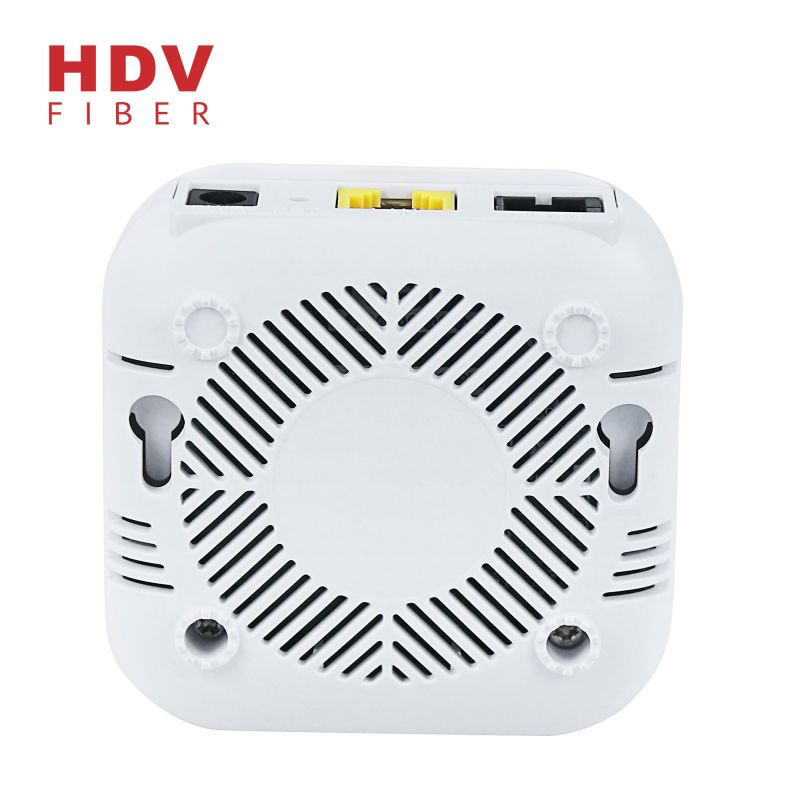

XPON Mini 1GE HTR5035X SPECIFICATION

Short Description:

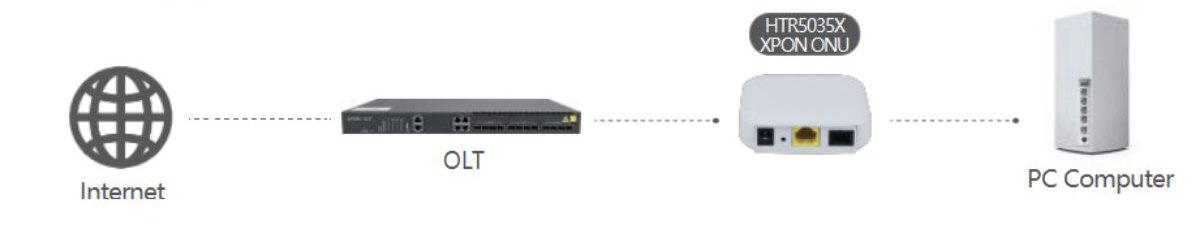

HTR5035X is designed as SFU/HGU in differ- ent FTTH solutions, The carrier-class FTTH application provides data service access.

HTR5035X is based on mature and stable,

cost-effective XPON technology. It can switch automatically with EPON and GPON mode

when access to the EPON OLT or GPON OLT.

HTR5035X adopts high reliability, easy man- agement, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0 and GPON

Standard of ITU-TG.984.X

Send email to us

Product Detail

Product Tags

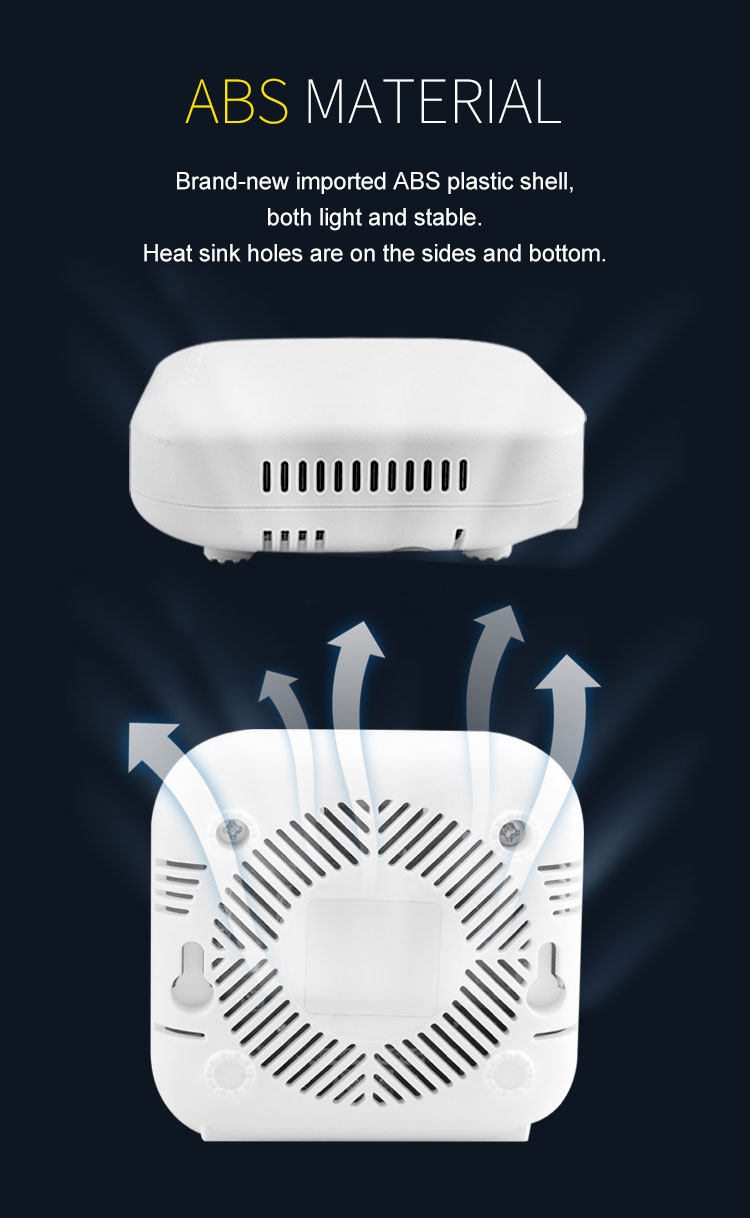

Functional Features

Support SFU/HGU type and switch mode from ONU Webpage

Support EPON/GPON mode and switch mode automatically

Support ONU auto-discovery/Link detection/re- mote upgrade of software

Support Route PPPoE/IPoE/Static IP and Bridge mode

Support IPv4/IPv6 Dual mode

Support Firewall function and IGMP multicast feature

Support LAN IP and DHCP Server configuration . Support Port Forwarding and Loop-Detect

Support TR069 Remote Configuration and mainte- nance

Specialized design for system breakdown preven- tion to maintain stable system

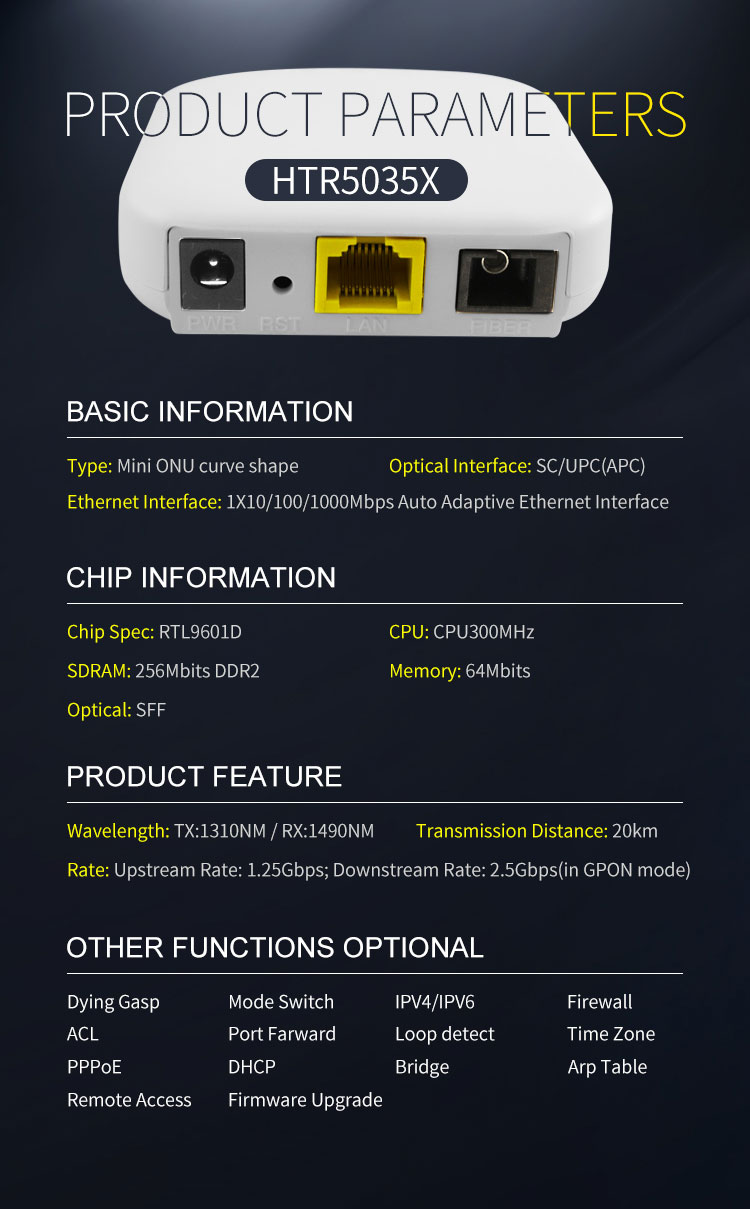

HARDWARE SPECIFICATION

Technical item	Details
PON Interface	1 GPON SFFReceiving sensitivity: ≤-27dBm Transmitting optical power: 0~+5dBm Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/UPC Connector
Chip Spec	RTL9601D,DDR2 32MB
Flash	SPI Nor Flash 16MB
LAN Interface	1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector
LED	4 LED, For Status of PWR、LOS PON、LINK/ACT
Push-Button	1 For Function of Factory Reset
Operating Condition	Temperature: 0℃~+50℃Humidity: 10%～90%（non-condensing）
Storing Condition	Temperature: -30℃~+60℃Humidity: 10%~90%（non-condensing）
Power Supply	DC 12V/0.5A
Power Consumption	<3W

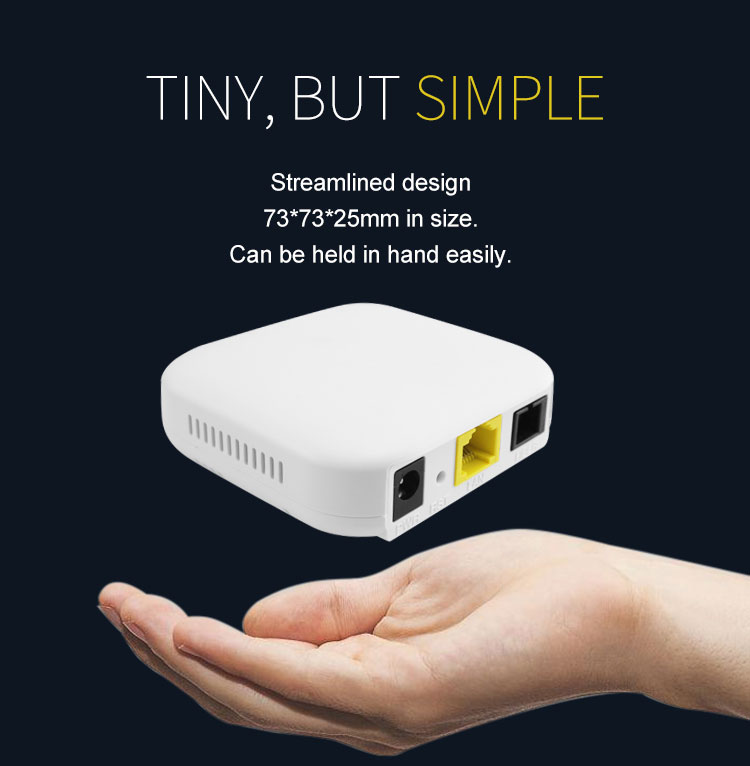

Dimension	75mmx75mmx28mm(L×W×H)
Net Weight	0.12Kg

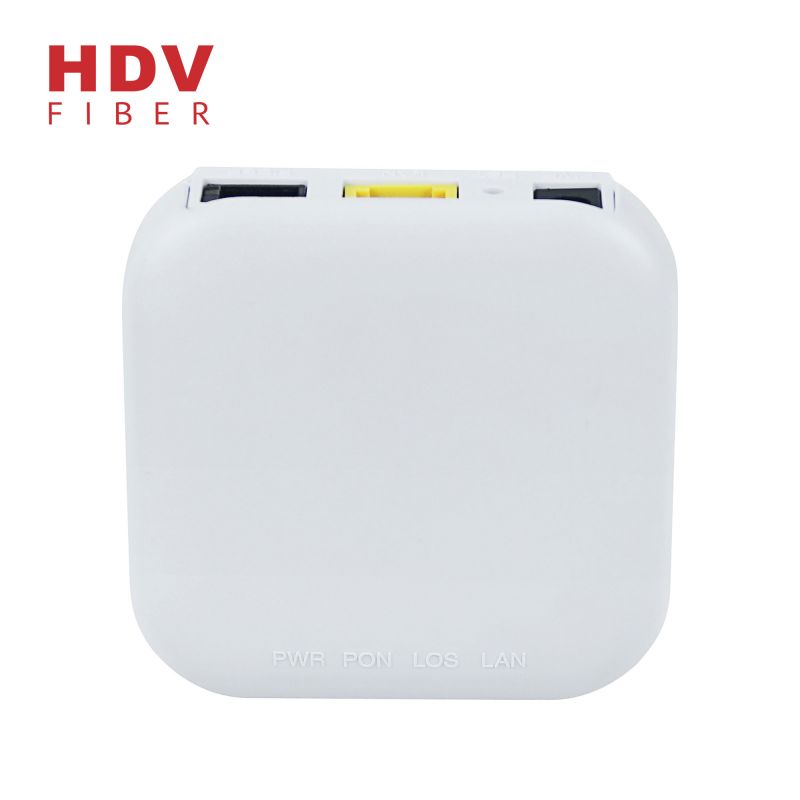

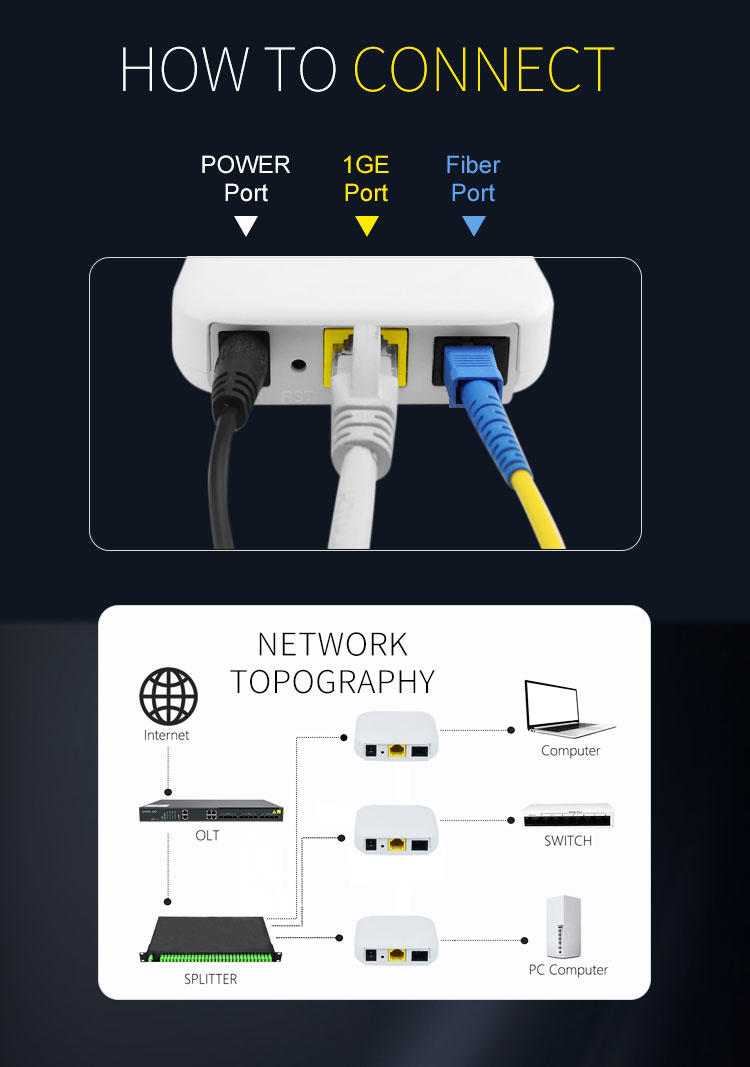

PANEL LIGHTS INTRODUCTION

Pilot Lamp	Status
PWR	On The device is powered up.Off The device is powered down. On The device has registered to the PON system.
PON	Blink The device is registering the PON system.Off The device registration is incorrect.
LOS	Blink The device doses not receive optical signals or with low signals.Off The device has received optical signal.
LINK/ACT	On Port is connected properly (LINK).Blink Port is sending or/and receiving data (ACT). Off Port connection exception or not connected.
